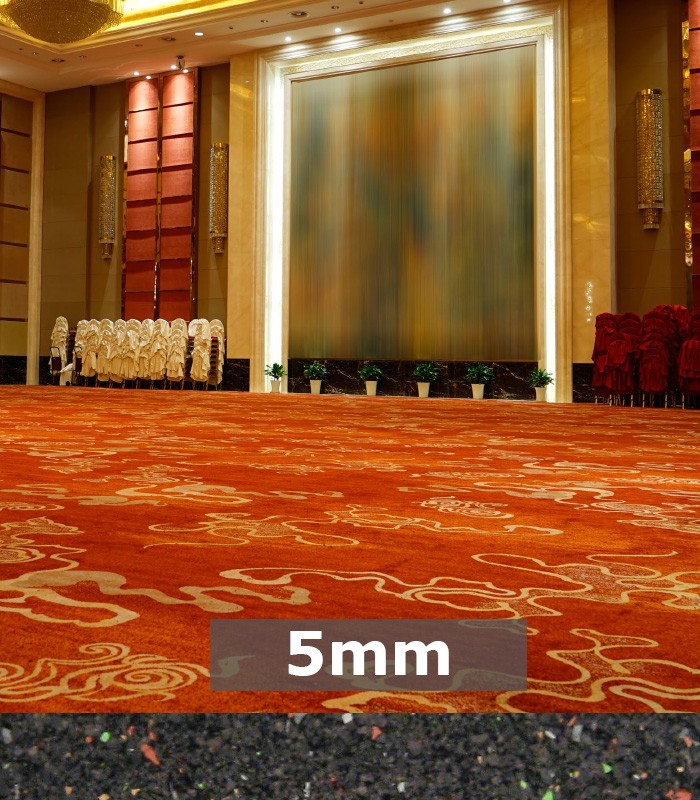

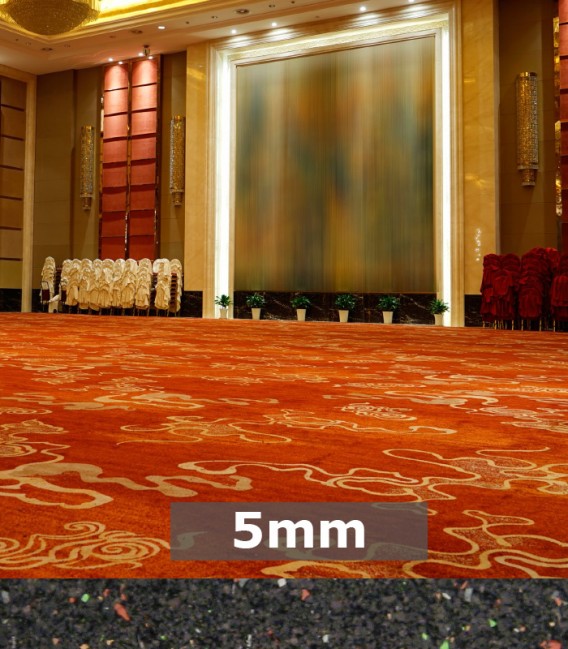

Regupol sonus core 5 attenuates impact sound at source - directly under the floor covering. Flooring is conveniently installed directly on top of the acoustic underlay.
Independently tested under laboratory controlled conditions and on-site testing to show it meets the Deemed-to-Satisfy Provisions of the current building regulations in accordance with the Building Code of Australia Part F5.4 sound Insulation Ratings of Floors (Impact).
Offers long term performance without collapse or bottoming out.

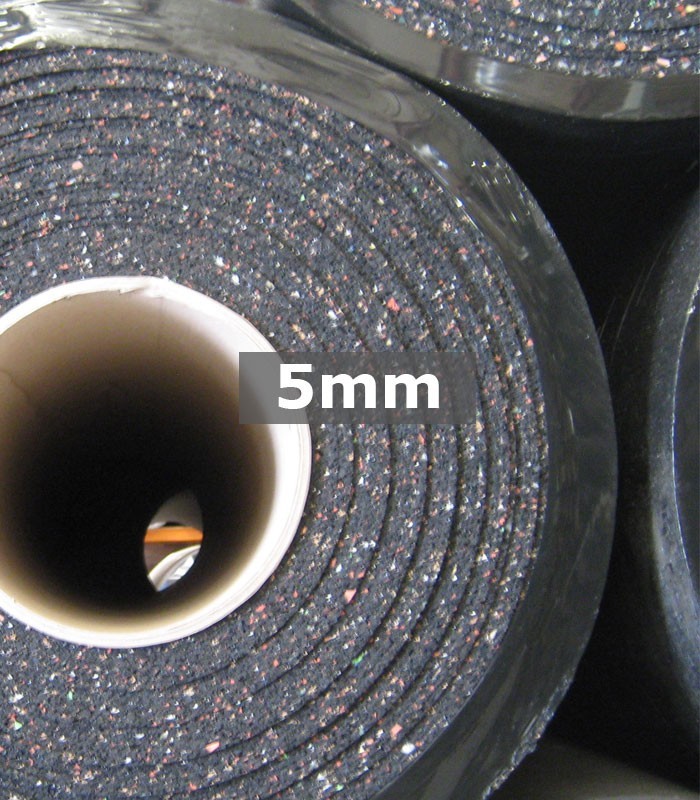

Available in rolls and modular tiles (new format) - supports fast installation.
Made in Germany from recycled material
Minimal creep, even under high loads.
Resistant to ageing and deformation.
Quick and easy to install.
Minimises construction heights.
High quality and exact material thicknesses.
Suitable for use with under floor heating.
Protects expansion joints.
Limits sound transference
Cushioning qualities make flooring comfortable underfoot
Manufactured and Certified to OHAS 18001:1999, DIN ISO 9001:2000, DIN ISO 14001:2004 Management Systems.
Regupol adhesives are formulated to maximize the performance of Regupol flooring and acoustic products. Regupol adhesives are made in Australia and are VOC compliant for green buildings, offering specifiers and installation contractors a warranted flooring system.

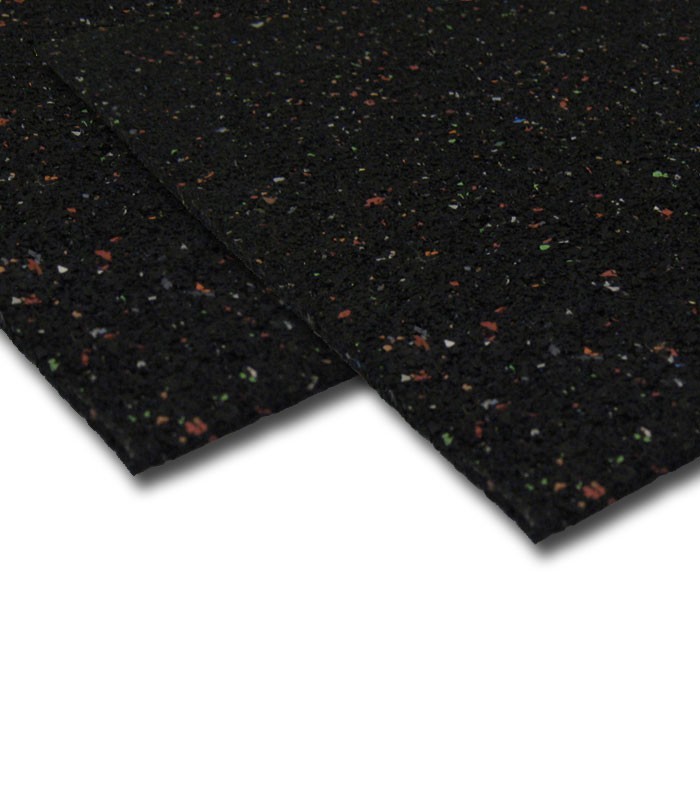

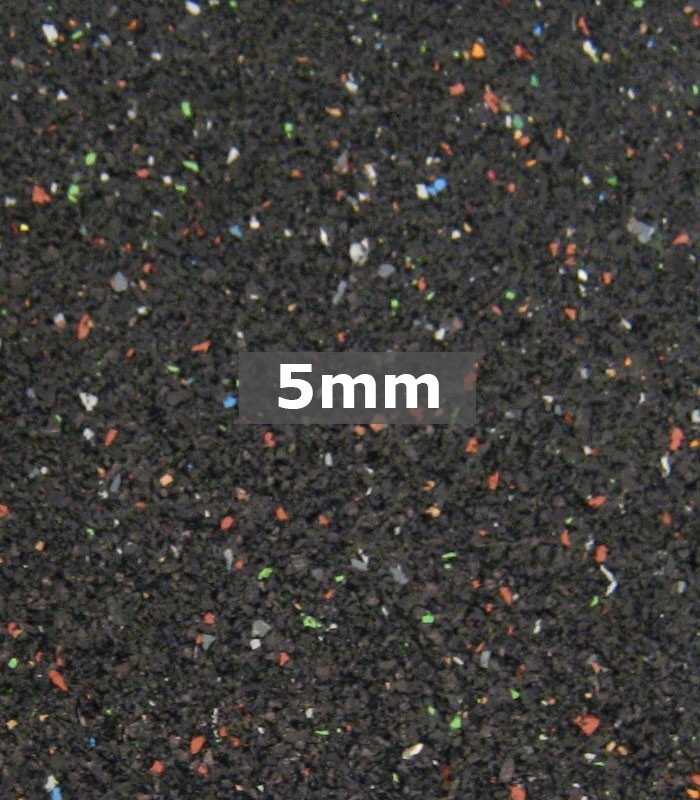

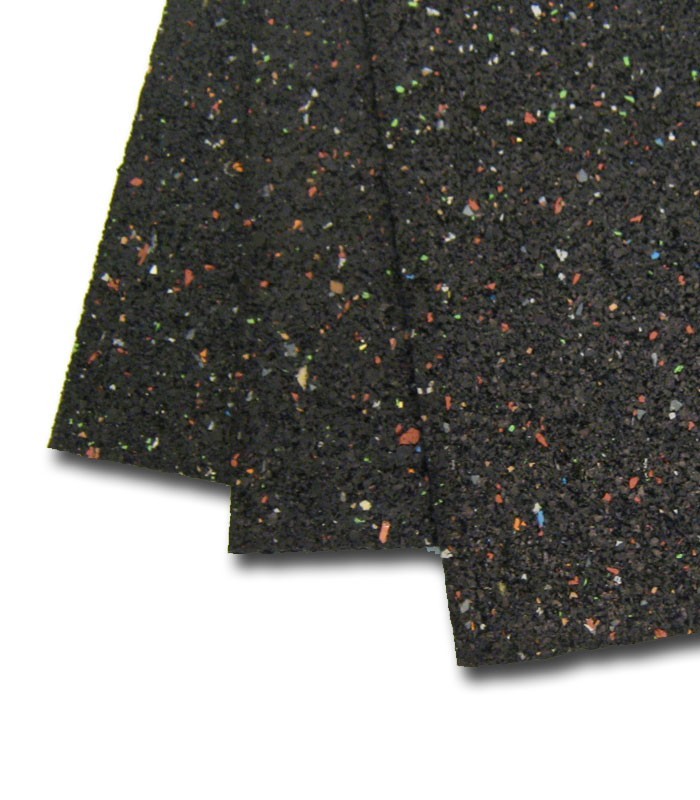

Pre-manufactured acoustic underlay made from selected SBR rubber and recycled materials, bound with polyurethane
20 or 50 metres
Modular tile size
1050 x 500mm
0.5 N/mm2 (DIN 53571, Specimen B)
Elongation at break
48% (DIN 53571, Specimen B)
-40˚C to +115˚C
B2 (DIN 4102)
Data is based on periodical lab testing of test specimen taken from the actual manufacturing process and show the average values as measured. Slight tolerances within the common limits are possible.
