6010 10mm Regupol Acoustic Underlay

RAU-005-screed-006

New product

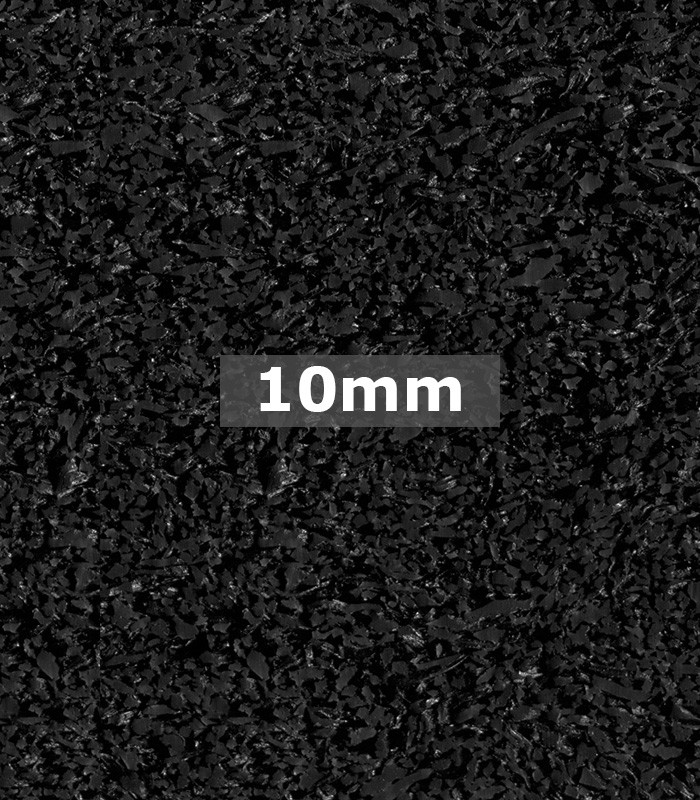

UNDERLAY FOR SCREED BEDS (10mm thick)

Regupol 6010 10mm is an acoustic underlay made from SBR rubber, bound with polyurethane and is ideal for multi-residential dwellings, commercial, retail and fitness applications.

RETAIL PRICE: FROM $37.50 per SQM*

WHOLESALE PRICE: Please contact us

* All prices are exclusive of GST

More details


More info

Areas of application:

SCREED BEDS

Regupol 6010 10mm is available in rolls and modular tiles (new format). This new format facilitates fast installation and is ideal for the DIY installer.

Independently tested under laboratory controlled conditions and on-site testing to show it meets the Deemed-to-Satisfy Provisions of the current building regulations in accordance with the Building Code of Australia Part F5.4 sound Insulation Ratings of Floors (Impact).

  • Offers long term performance without collapse or bottoming out.

  • Also available in new modular format (tiles) - supports fast installation.

  • Minimal creep, even under high loads.

  • Resistant to ageing and deformation.

  • Quick and easy to install.

  • PVC free.

  • Made in Germany from recycled materials.

  • Minimises construction heights.

  • A Good Environmental Choice Australia (GECA) certified sustainable product.

  • High quality and exact material thicknesses.

  • Suitable for use with under floor heating.

  • Protects expansion joints.

  • Limits sound transference.

  • Cushioning qualities make flooring comfortable underfoot.

  • Proven durability.

  • Manufactured and Certified to OHAS 18001:2007, DIN ISO 9001:2008, DIN ISO 14001:2004 Management Systems.

ADHESIVES

Regupol adhesives are formulated to maximize the performance of Regupol flooring and acoustic products. Regupol adhesives are made in Australia and are VOC compliant for green buildings, offering specifiers and installation contractors a warranted flooring system.


Data sheet
Product descriptionPre-manufactured acoustic underlay made from selected SBR rubber, bound with polyurethane
MaterialRecycled rubber granules, with highly elastic polyurethane, volume elastic
Roll width1.25 metres
Roll length20 metres
Modular tile size1050 x 600mm
Material thickness10mm
Specific weight5.8kgs/m2
Density580kgs/m3
Tensile strength0.5 N/mm2 (DIN 53571, Specimen B)
Elongation at break70% (DIN 53571, Specimen B)
Temperature resistance-40˚C to +115˚C
Fire classificationB2 (DIN 4102)
NoticeData is based on periodical lab testing of test specimen taken from the actual manufacturing process and show the average values as measured. Slight tolerances within the common limits are possible.

Brochures

Screed:



Screed 6010 8-4mm acoustic underlay

Applications

Regupol underlay is used in most building constructions including:

  • Apartments

  • Schools

  • Offices

  • Hospitals

  • Libraries

  • Commercial Buildings

  • Multi-storey buildings

  • Private homes
