6010 8/4mm Regupol Acoustic Underlay

RAU-005-screed-004

New product

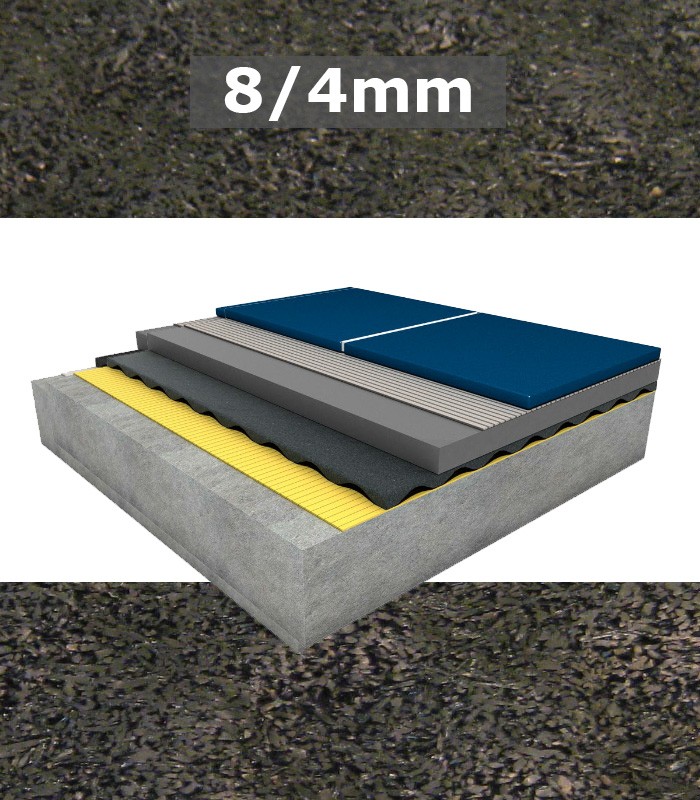

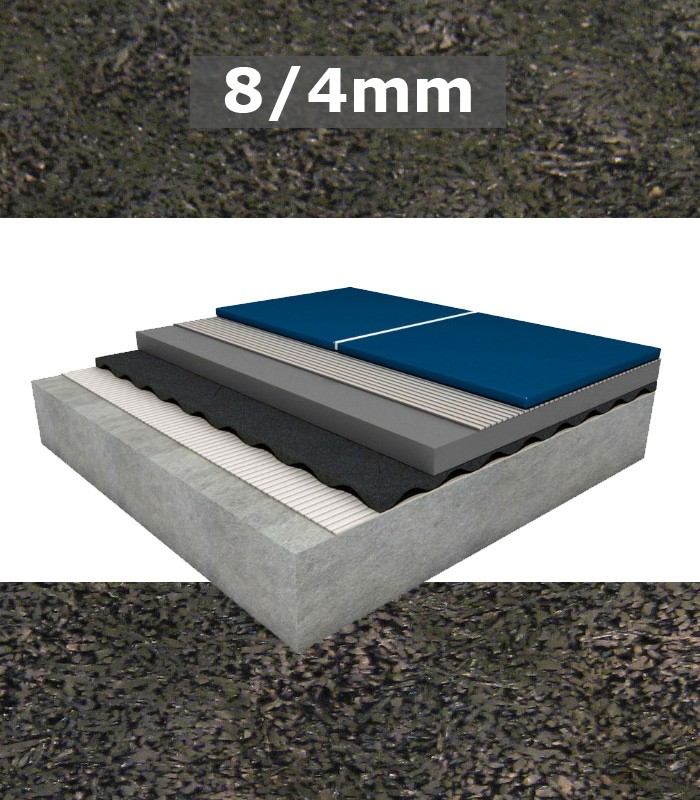

UNDERLAY FOR SCREED BEDS (8/4mm thick)

Regupol 6010 8/4mm is finished in a dimple profile and is technically superior when it comes to bonded screed beds. The dimple profile reduces 'impact sound' and allows the generated noise to dissipate.

RETAIL PRICE: FROM $25.00 per SQM*

WHOLESALE PRICE: Please contact us

* All prices are exclusive of GST

More details


More info

Areas of application:

SCREED BEDS

Regupol 6010 8/4mm is very popular under bonded screed beds and commercial screeds and is used extensively throughout the education, retail, commercial and multi-residential building sectors.

Regupol 6010 8/4mm is available in rolls and modular tiles (new format). This new format facilitates fast installation and is ideal for the DIY installer.

Independently tested under laboratory controlled conditions and on-site testing to show it meets the Deemed-to-Satisfy Provisions of the current building regulations in accordance with the Building Code of Australia Part F5.4 sound Insulation Ratings of Floors (Impact).

  • Offers long term performance without collapse or bottoming out.

  • Also available in new modular format (tiles) - supports fast installation.

  • Minimal creep, even under high loads.

  • Resistant to ageing and deformation.

  • PVC free.

  • Made in Germany from recycled materials.

  • Quick and easy to install.

  • Minimises construction heights.

  • High quality and exact material thicknesses.

  • Suitable for use with under floor heating.

  • A Good Environmental Choice Australia Certified sustainable product (GECA)

  • Protects expansion joints.

  • Limits sound transference

  • Cushioning qualities make flooring comfortable underfoot

  • Proven durability

  • Manufactured and Certified to OHAS 18001:2007, DIN ISO 9001:2008, DIN ISO 14001:2004 Management Systems.

  • Regupol is a Natspec product partner.

NATSPEC product partner

ADHESIVES

Regupol adhesives are formulated to maximize the performance of Regupol flooring and acoustic products. Regupol adhesives are made in Australia and are VOC compliant for green buildings, offering specifiers and installation contractors a warranted flooring system.


Data sheet
Product descriptionPre-manufactured acoustic underlay made from selected SBR rubber, bound with polyurethane

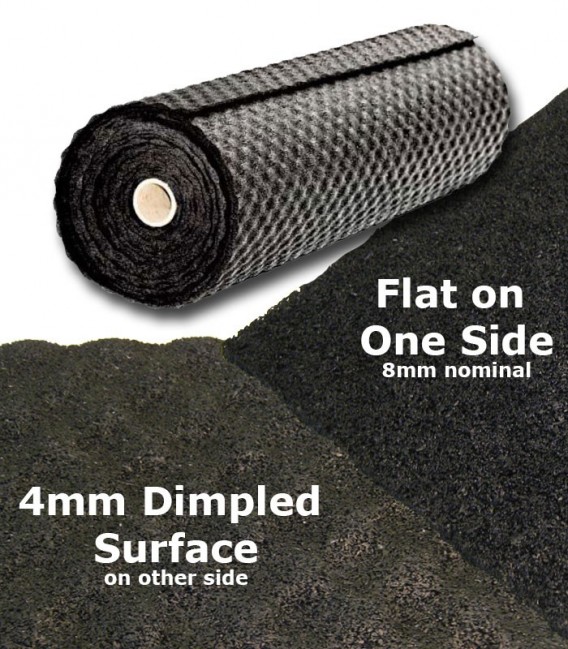

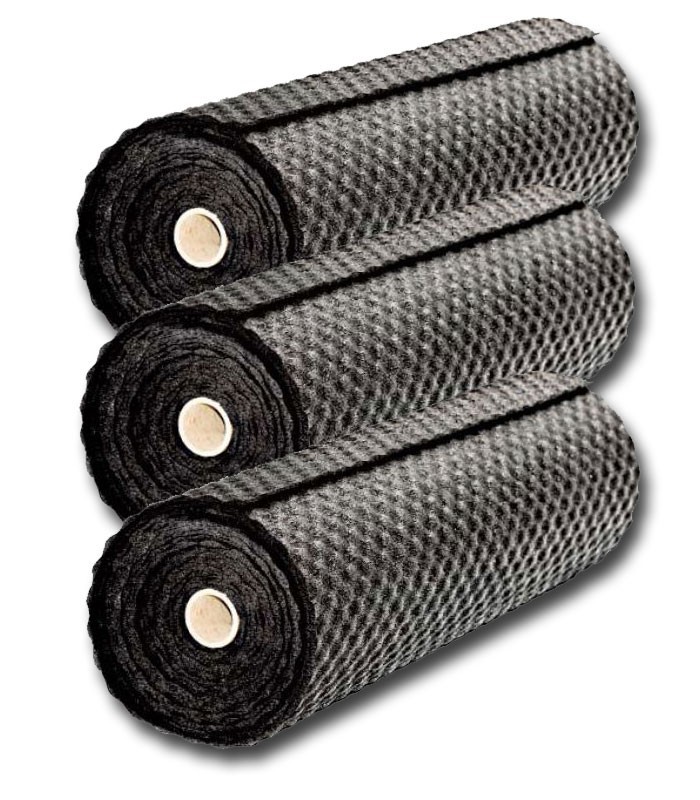

Roll width1.15 metres
Roll length20 metres
Modular tile size1050 x 600mm

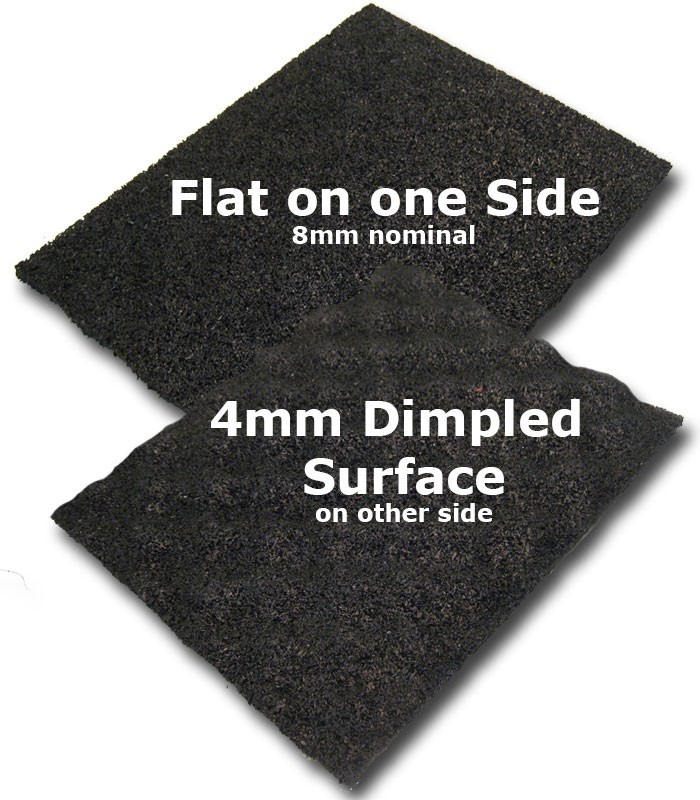

Material thickness8mm (4mm dimpled surface on one side)
Specific weight3.3kgs/m2
Mean Value of Dynamic Stiffness47MN/m3 (DIN EN 290552-1)
Thermal conductivity0.14 W/mK
Density550 kgs/m3
Maximum Load Bearing Capacity3000kg/m2
Tensile strength0.3 N/mm2 (DIN 53571, Specimen B)
Elongation at break50% (DIN 53571, Specimen B)
Temperature resistance-40˚C to +115˚C
Fire classificationB2 (DIN 4102)
NoticeData is based on periodical lab testing of test specimen taken from the actual manufacturing process and show the average values as measured. Slight tolerances within the common limits are possible.

Brochures

Screed:



Screed 6010 8-4mm acoustic underlay

Applications

Regupol underlay is used in most building constructions including:

  • Apartments

  • Schools

  • Offices

  • Hospitals

  • Libraries

  • Commercial Buildings

  • Multi-storey buildings

  • Private homes
